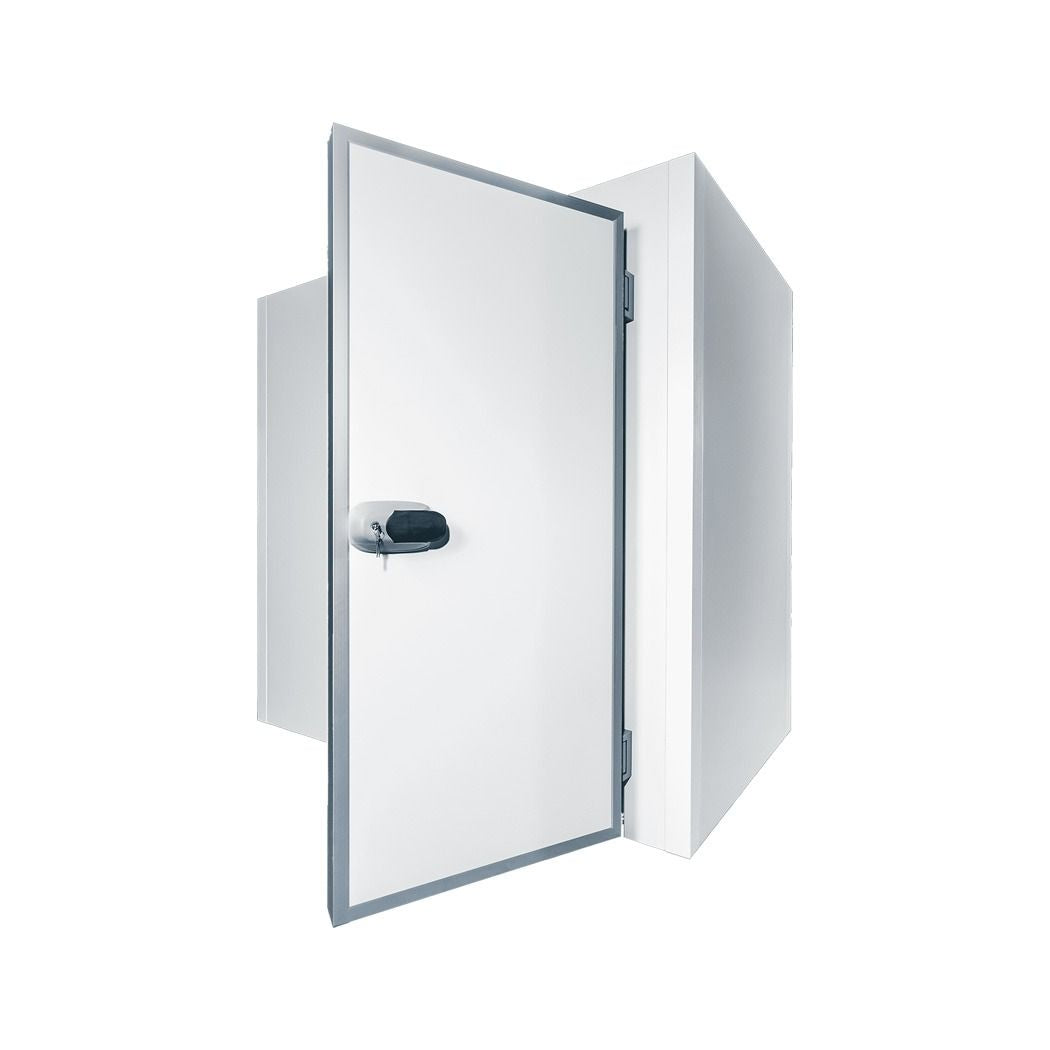

Optima Chiller Coldroom with Flooring 1600mm x 800mm x 2030mm high + Rivacold FTM006G001 Single Phase Wall Mounted Refrigeration Monoblock Unit

Just like our other modular cold rooms, Optima is  ideal for the conservation and cold storage solutions required  in hotels, restaurants, catering companies, food trade and commercial kitchens.

The Optima is equipped with innovative features whose  purpose is to improve and facilitate the work of both the installers and the final customer .

Easier to assemble due to its modular system with 4 angles

This new system, with 4 white coloured (RAL 9010 / Ref 1006) injected angles, offers more flexibility and better space optimization for the design of small cold rooms.

Flooring

The floor panels are reinforced and have resistant anti-slip phenolic resin coating and with Class 3 Anti-Slip Classification Certificate (the same required in outdoor swimming pool areas)

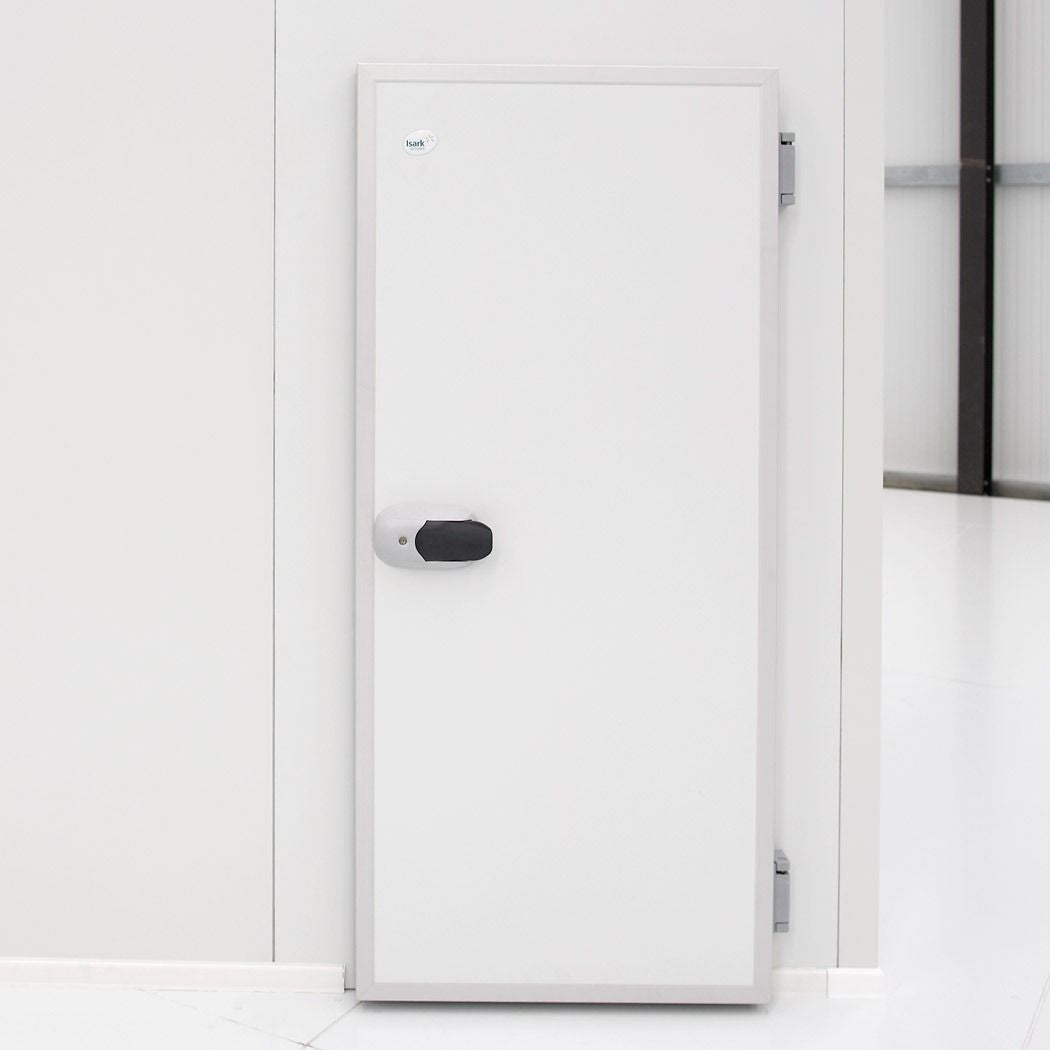

Hinged Door including frame

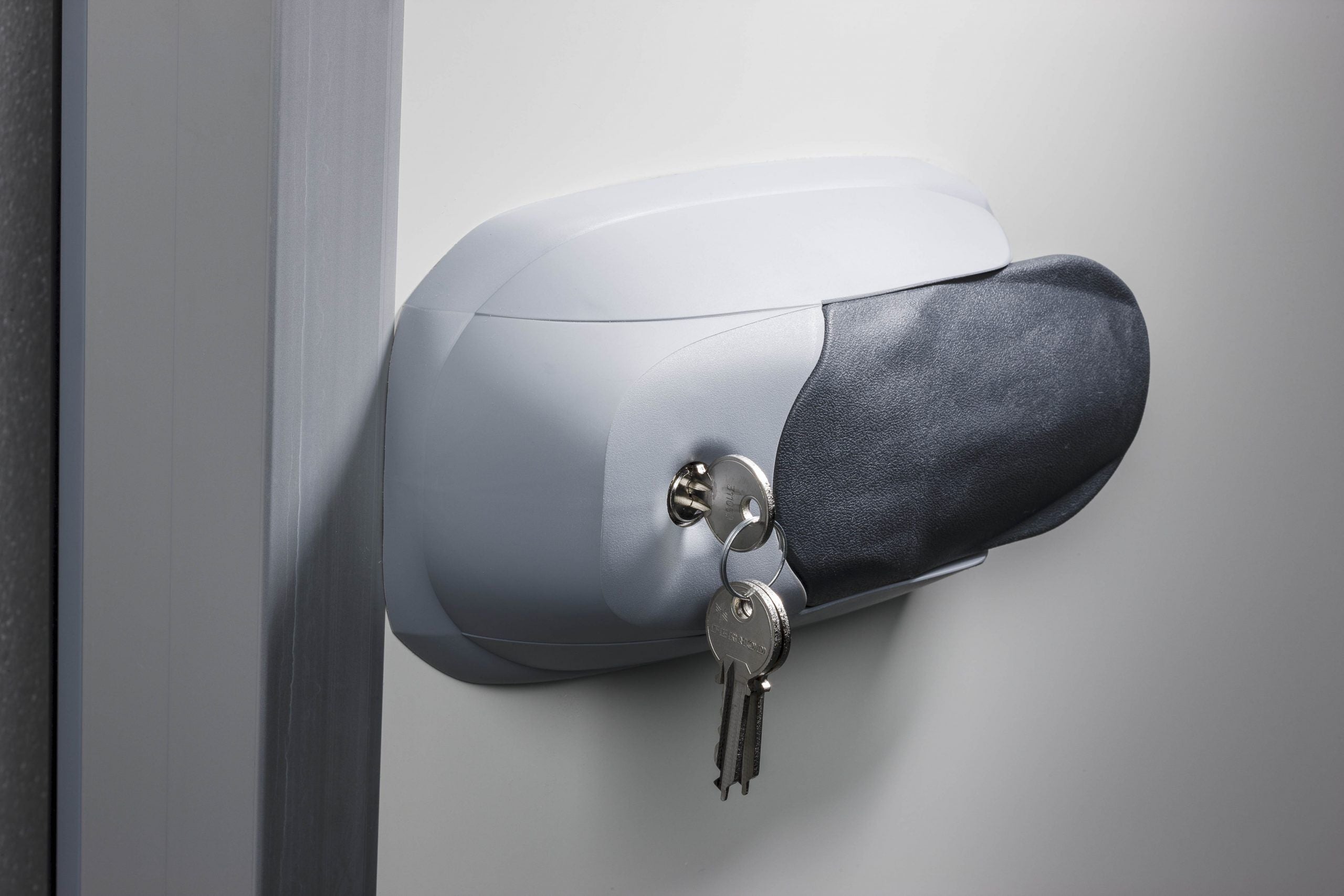

It is possible to move the door panel leaf to adapt it to the characteristics of the installation. All our hinged doors include a key lock, panic bar and right-left opening direction

Refrigeration System

Rivacold FTM006G001 Single phase Wall Mounted Monoblock Refrigeration Unit capable of achieving 0 degrees for up to 6 Cubic Metre

Features

Self-supporting casing in zinc-plated metal sheet, which is coated with epoxy powder

Front panel easy to be removed in order to guarantee an easy access to the components and a fast maintenance intervention

Hermetic compressors with thermal motor protection

Electronic board that can be programmed according to different user requirements

Heat exchangers with copper and aluminium blocks

Condensation by air (optional by water)

Expansion by capillary tube or thermostatic valve Automatic defrosting with programmable run, duration and frequency settings “Off cycle defrosting (HBP), and hot gas defrosting (MBP, LBP).”

Integral evaporating condensing water tray, or condensing water direct discharge

Electronic control panel Cold room light with 2,5m long cable Door micro switch with 2,5m long cable Door heater cable for LBP items with 2,5m long cable High pressure switch

Evaporating water tray Power supply cable (L=2,5m) Package included

Easy to assemble and disassemble

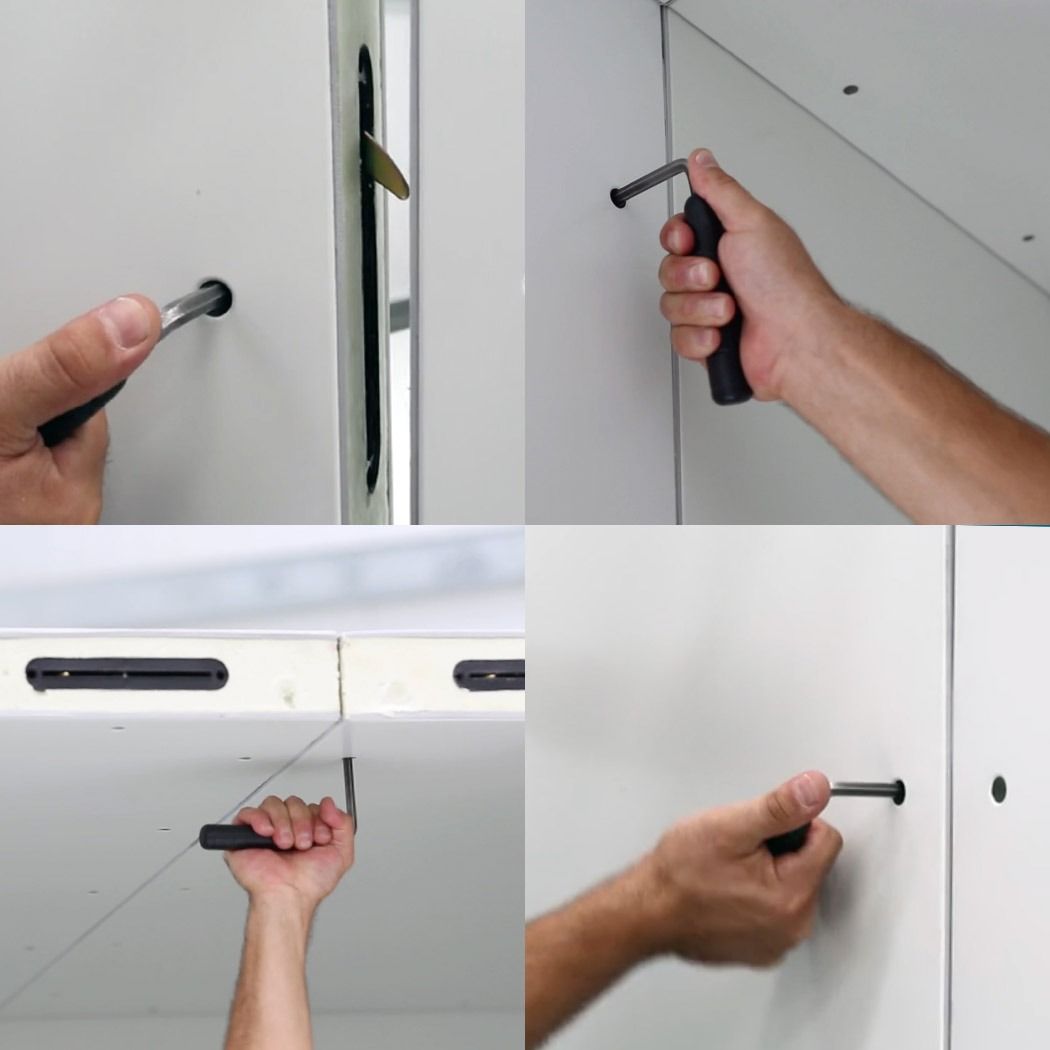

The fixation system between modules consists of two metal latches with anti-corrosion treatment, mounted on highly resistant PVC boxes. Steam barrier continually is guaranteed by means of polyethylene or silicone, guaranteeing adequate insulation. The fixation points form part of the same panel and do not require additional assembly parts. Fast and simple assembly, without any need for cutting.

Certification

The panels of our cold rooms have CE Marking (CE) and our panel is certified according to the European Euroclass system, which classifies construction materials in accordance with fire reaction and behaviours, obtaining Bs2d0 classification. The floor panels have a resistant anti-slip phenolic resin coating with Class 3 Anti-Slip Classification Certificate (the same required in outdoor swimming pool areas).
