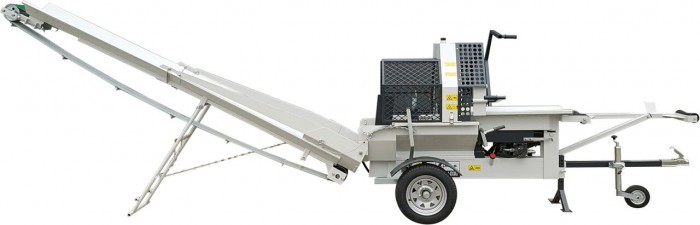

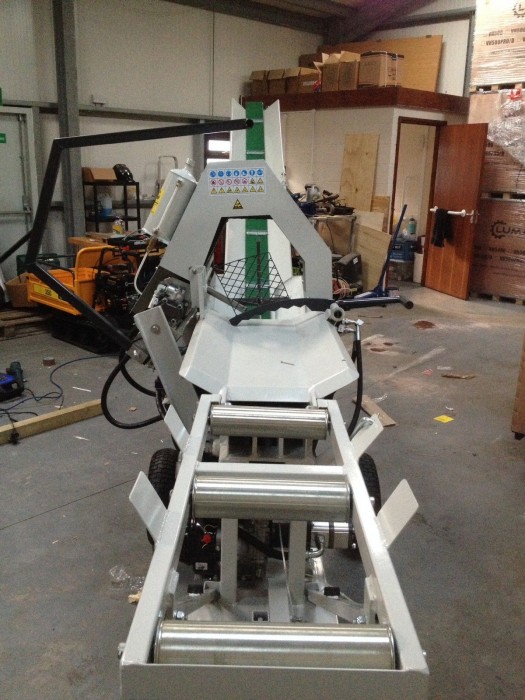

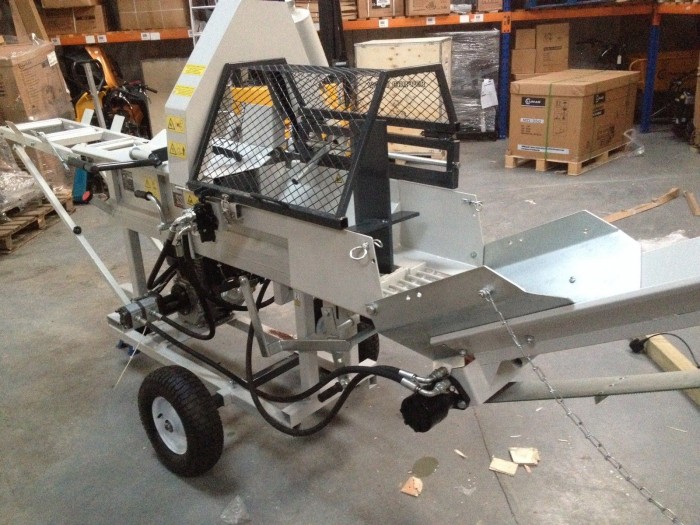

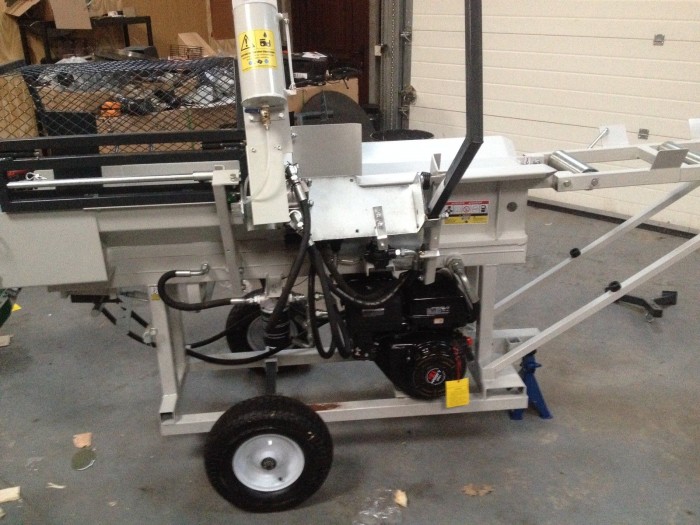

Lumag SSA400G Petrol Firewood Processor

Lumag SSA400G Petrol Firewood Processor

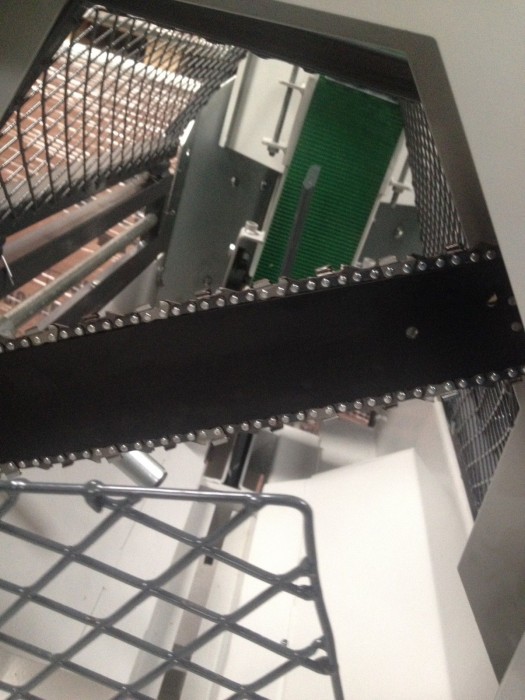

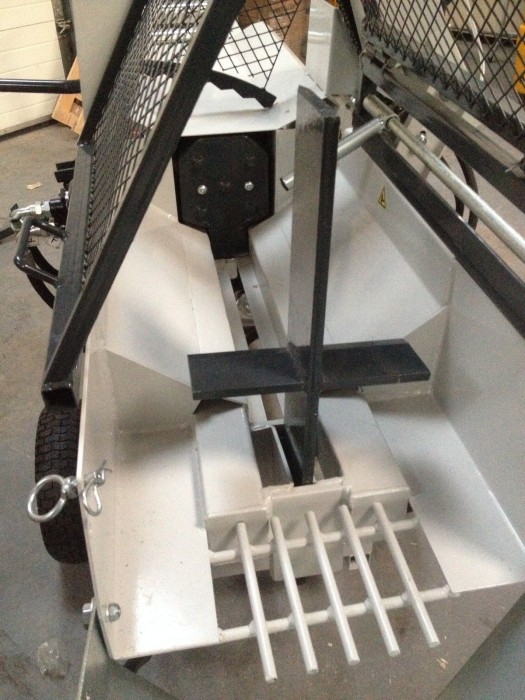

The Lumag SSA400G Petrol Firewood Processor is a smooth and efficient single person saw used to split firewood. The wood is sliced by the inner chainsaw to your desired length before being dropped down into the splitting chamber below. The solid, well built machine sits on a trailer chassis and as a result can be easily moved around site. Additionally, the conveyor and roller table can be folded up for easy storage.


Lumag SSA400G Petrol Firewood Processor Features:

Operator can specify length of cut
Extended product life due to solid, well built and robust design
Easily moved around site due to the machine being built onto a trailer chassis
Easy transportation via folding conveyor and roller table

Lumag SSA400G Specifications:

Fuel Type:
Petrol

Engine Power (cc):
389

Motor Power (kw):
9.5

Hydraulic Chainsaw Speed (rpm):
7200

Cutting Length (Max.) (mm):
550

Cutting Diameter (mm):
380

Conveyor Speed (m/s):
0.8

Splitting Speed (Forward/Backward) (cm/s):
4 / 3

Splitting Force (Tons):
10

Bar Length (mm):
500

Gap Length (Max.) (cm):
20 – 55

Gap Diameter (Max.) (cm):
10 – 38

Weight (kg):
415

Conveyor Belt Dimensions (LxWxH) (mm):
3200 x 150 x 2800

Saw Packaging Dimensions (LxWxH) (mm):
1800 x 720 x 110

Conveyor Packaging Dimensions (LxWxH) (mm):
1870 x 360 x 560

Assembled Dimensions (LxWxH) (mm):
3000 x 1050 x 1600

Questions
Should you have any questions regarding the Lumag SSA400G, by all means, contact our fully trained staff for advice and assistance.
