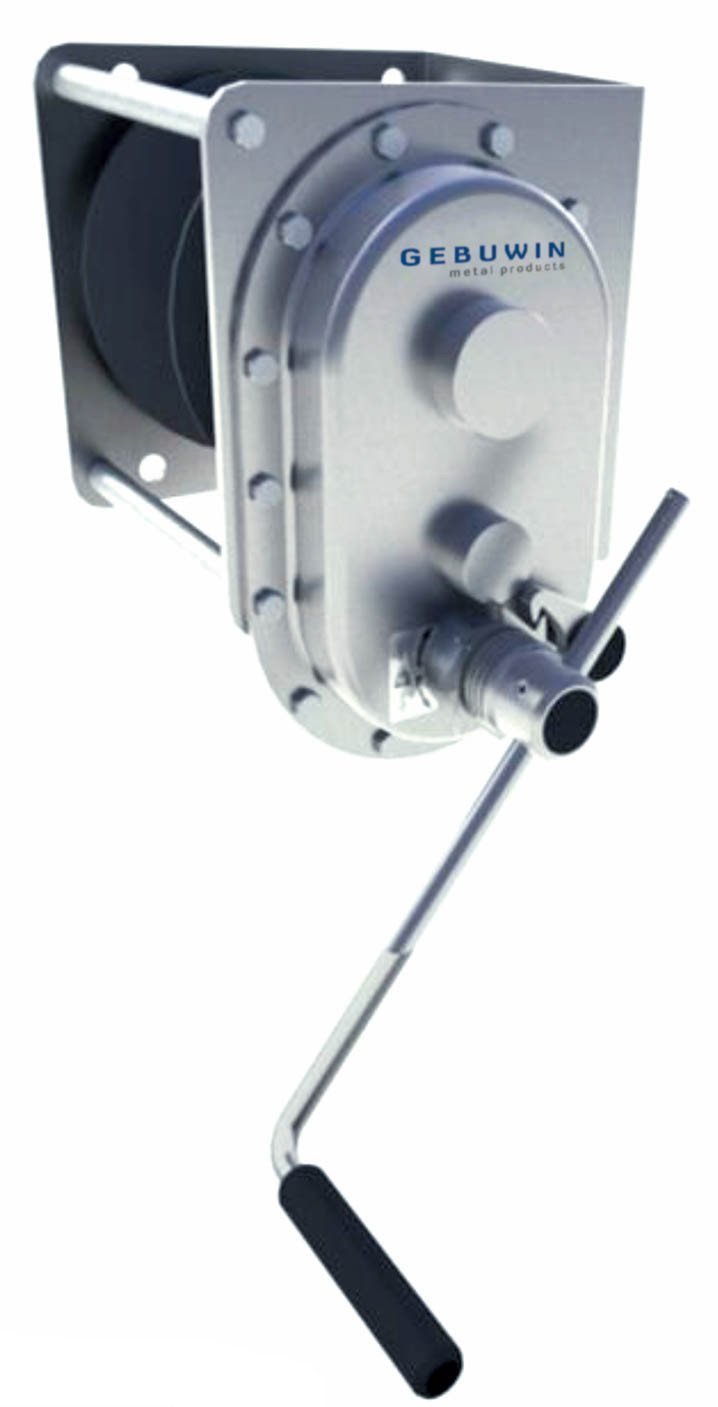

Gebuwin – Tl Gr Spur Gear Painted Winches (156-14) – Tl1000 Gr Spurgearwinch Ref:156.14.6 – Hand Driven Spur Gear Winches – Silver – Steel

Data Sheet :åÊThe Gebuwin Range Of Hand Driven Spur Gear Winches Are Known For Their Robust Construction. The Cranks Can Be Adjusted In Length And Are Recoil-Free. All Rotating Parts Run In Maintenance Free Bearings. The Tl1000 And Tl1500 Have A Closed Spur Gear Casing.åÊTl Gr Or Tl Ev Single Drum Spur Gear (Sg) Winch (Type Tl)Robust And Safe Hoisting Winchlifting Capacity 150Kg To 1500Kgstatic Safety Factor Of 4For Wall MountingåÊCable Outlet Possible To Left, Right And Top Sidespur Gear Operated Winch With Maintenance Free Bearingsadjustable Crank From 250 To 820Mm With Ergonomic Plastic Gripload Pressure Brake With Quiet Double Ratchet Systemfabricated Steel Frame Suitable For Wall Mountingstandard Paint Finish (Ral 7035)In Compliance With En13157, Duty Class To Din 15020**as Standard Supplied Without Wire Rope – Prices Available On Request**
