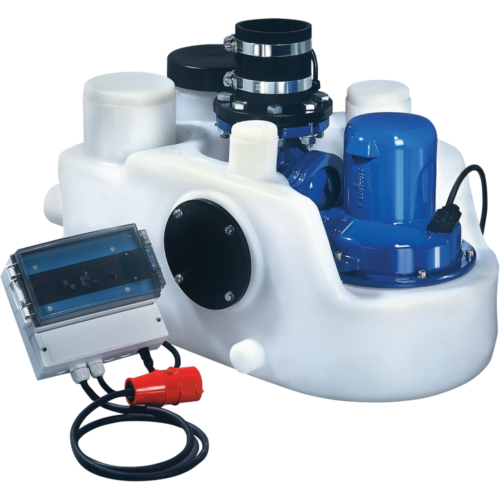

 Floor Mounted Sewage Pump Station BD-70Atlas
Description:
The floor mounted sewage pump station BD-70Atlas is a fully automatic system that is suitable for pumping both foul and greywater to a higher level when gravity drainage is unavailable or too costly to install.
The BD-70Atlas system is suitable for installation either at the initial building stage or as a retrofit to an existing building. It can accept wastewater from a bathroom, changing room, commercial premises or similar.
The product is easy to install because there are a number of inlets at varying levels/sizes available with the inlets needing to be cut at the site to suit the conditions.

Dimensions: L=800mm x W=500mm x H=423mm
Capacity = 70 litres
Weight = 55Kg
Colour = white
Material of construction = polypropylene
Discharge = DN80
Pump Type = vortexy set for easy installation
Max. vertical = 7 metres
Max.flow rate = 12 litres/sec
Rated current = 8.4A
Cable length = 1.5metres
Control panel – factor
