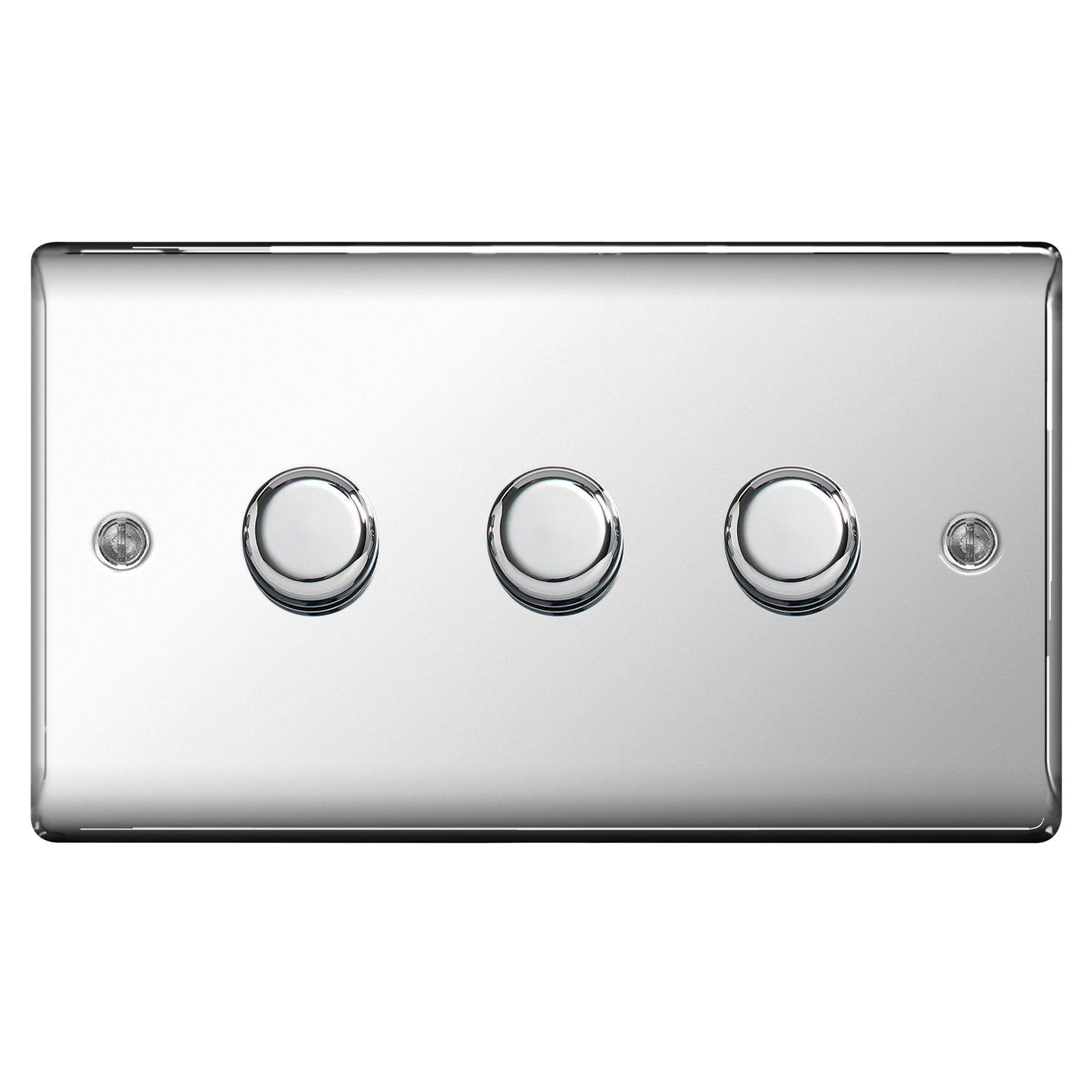

BG NPC83 Polished Chrome Trailing Edge Triple Dimmer Switch 3 Gang 2 Way LED – Masterlec

Suitable for domestic or commercial installations. The Sleek, slim design with rounded corners & gently curved rocker, which will blend in with any décor. Fixed integrated plastic gasket to protect metal edges from moisture Lightly lacquered surface to reduce fingerprint marks Stylish modern profile with no visible plastic around switches Colour matched fixing screws Features Overload protection- This dimmer is fitted with an overall current protection device, in the event of an overload condition the dimmer will stop working until the overload is corrected. Soft start- To prolong the life of the connected lighting this dimmer features a soft start function. Upon switching on, lighting will increase from 0-100% in 1.2 seconds. Load information Lamp Type Rating Incandescent 5-200VA Eco-halogen 20-200VA Dimmable LED 5-100W 1 to 10 Dimmable CFLs Dimmable CFL 5-100W 1 to 8 Dimmable CFLs High Voltage Halogen 20-200VA Technical Voltage: 220-240V ac Frequency: 50/60Hz Dimmer Type: Trailing Edge Terminal Capacity: 2 x 1mm ² 2 x 1.5mm² Incandescent and ECO Halogen Lamps Plate Size No. of Dimmers Max. each Dimmer Max. total per plate Square Plate 86mm x 86mm 3 150W 450W Min box depth (profiled plates): 35mm
