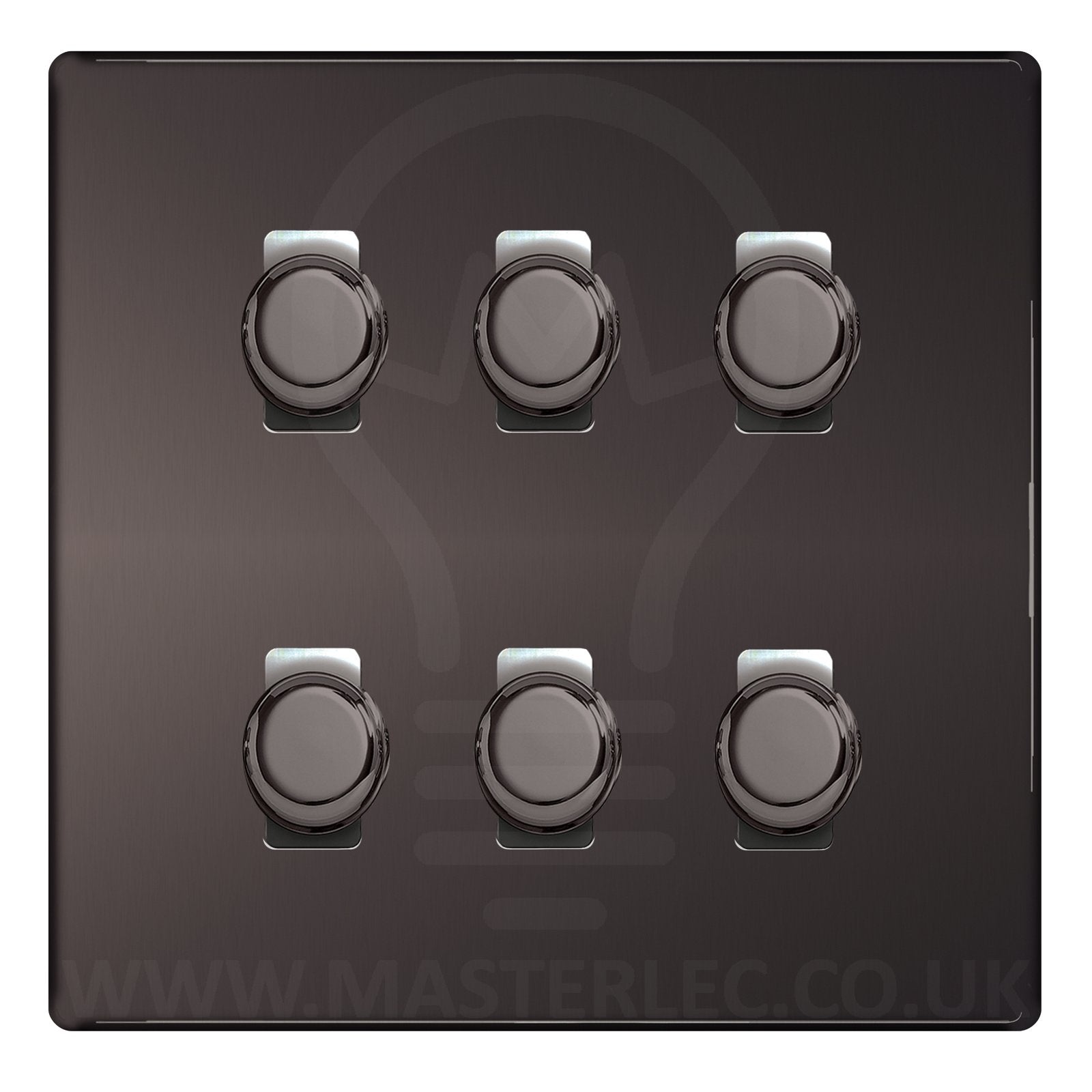

BG Black Nickel Screwless Flat Plate 6 Gang Trailing Edge LED Dimmer Light Switch 2 Way Custom Switch – Masterlec
£116.99
Please note that this switch will come in a grid format. You will be sent the following parts all supplied by BG; 1x 6 & 8 Gang Flush Mounting Metal Back Box 1x 6 & 8 Gang Grid Yoke Frame 1x 6 Gang Cover Plate 6x Dimmer Switch The dimmer switches are ONLY compatible with trailing edge LED bulbs (Not compatible with leading edge). Please check that the bulbs you are using are compatible with the dimmer before purchasing. Please find below the list of bulbs that the dimmer is capable of dimming and the list of wattages that are suitable. Dimmer Module Technical Specifications Standard(s) BS EN 60669-2-1 Voltage 200-250V AC Load Rating (Max/Min per module) Dimmable LED 5-100W Tungsten/Incandescent 5-200W Halogen 20-200W Dimmable Compact Flourescent (CFL) 5-100W Type Trailing Edge Terminal Capacity 4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² & 1 x 4.0mm² RoHS Directive Yes WEEE Directive Yes Mounting Box Depth (Min) 25mm
Specification: BG Black Nickel Screwless Flat Plate 6 Gang Trailing Edge LED Dimmer Light Switch 2 Way Custom Switch – Masterlec
| Store Name | |
|---|---|
| Availability | In Stock |
