Battery backup Pump System – 24 V
Description:
The battery backup pump system is designed to protect a property where there is the possibility of primary pump failure because of either a primary pump fault or a loss of mains electrical power and the result would be catastrophic.

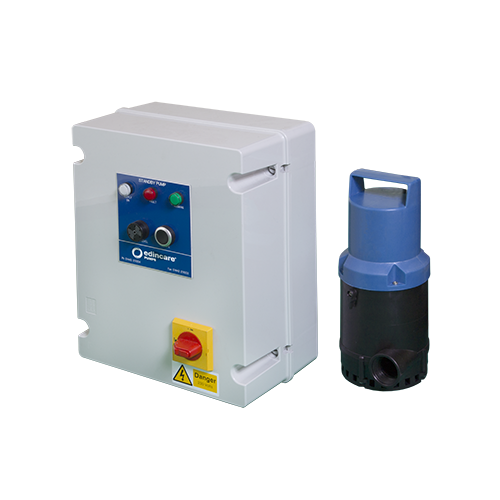

The system comprises a control panel, a 24VDC backup pump, three float switches and a non-return valve.
Key Features:

Freestanding 24VDC pump suitable for handling groundwater, surface water and stormwater application

Control panel displays system status

Visual and audible high-level water alarm indicator

Trickle charging conditions the battery to maintain a full charge

A non-return valve prevents backflow

Micro-float switches to activate the pump and the high water alarm

Technical Information:

Power supply to the panel = 240V
Rated current = 13A
P0wer supply to pump = 24VDC
Max. vertical lift = 6m
Max. flow rate = 150 litres / min
Discharge pipe size = 1 1/4″
Cable length = 3m
Panel dimensions: L = 496mm x W = 370mm x Depth = 200mm
Pump dimensions: L = 130mm x W = 150mm x Depth = 320mm
