Axis Broad Spectrum Carve Front Wing – Wing Foiling – The Foiling Collective

The ultimate all-rounder and start to your foiling journey
The Original Series (1020, 920, 820) performed admirably during the first generation of foiling water sports and are still ideal as beginner foils. When it was time to replace this model, AXIS set out to significantly improve speed and range, without losing the easy lifting properties that we all loved about the original series.

For the AXIS BSC range they have completely changed the outline, increasing aspect ratio and reducing thickness for vastly improved speed and glide, while incorporating what they had learned from the HPS project in turn down and twist for optimum turning. However, like the Original, they developed a foil section with a high stall angle. This means it still operates well at slow speeds, so will be forgiving if you make a mistake gybing on a Wind foil or Wing foil. It will also get you up easily and keep you foiling when surfing slow or weak waves.

The result is a foil that has an incredibly wide range of operation – the ultimate all-rounder. One day you could be foiling tiny waves on your SUP, the next you could be screaming across the harbour with a hand wing, all on the same foil.

The 810 BSC foil has quickly become the most popular prone foil, while the 1060 is the foil of choice for first season wing foilers. BSC is the go-to for SUP foiling too. If you want to wing and SUP foil with one setup, the BSC will be the ideal choice.

BSC foils are ideally matched with our Freeride Small, Freeride, Progressive or Speed rear wing ranges.
Red Series

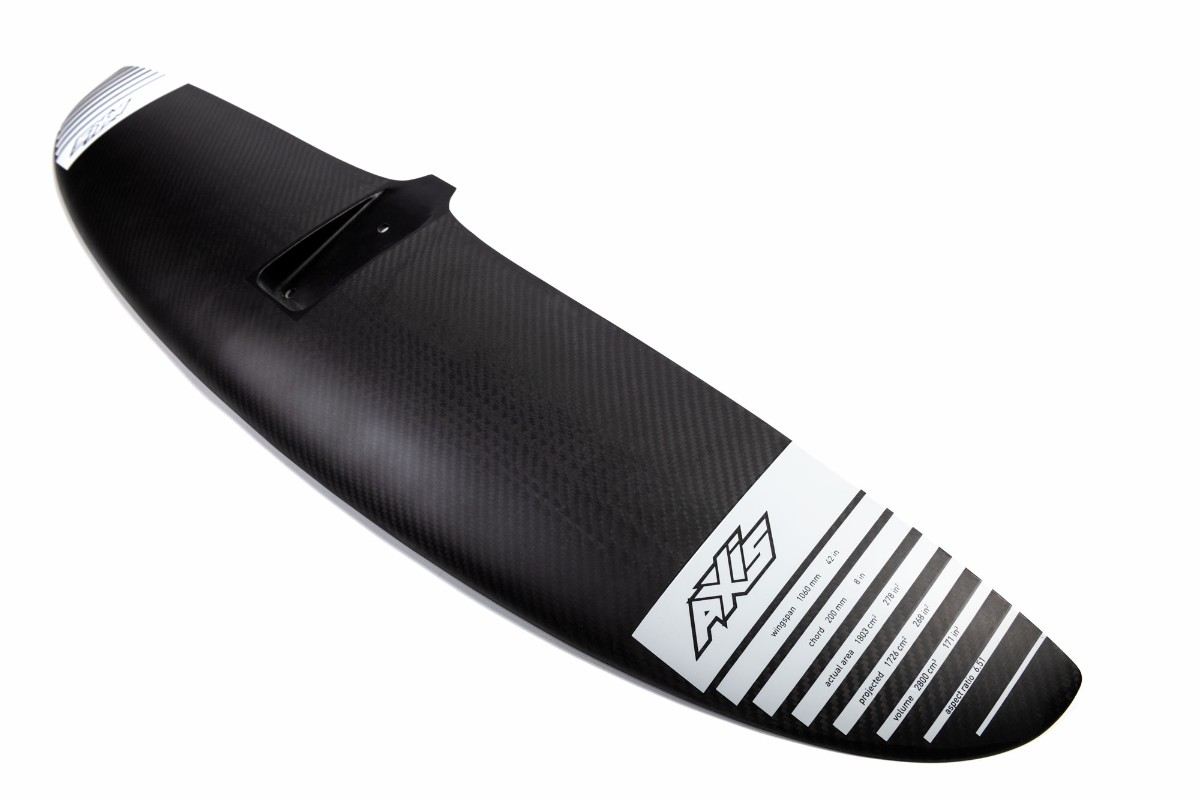

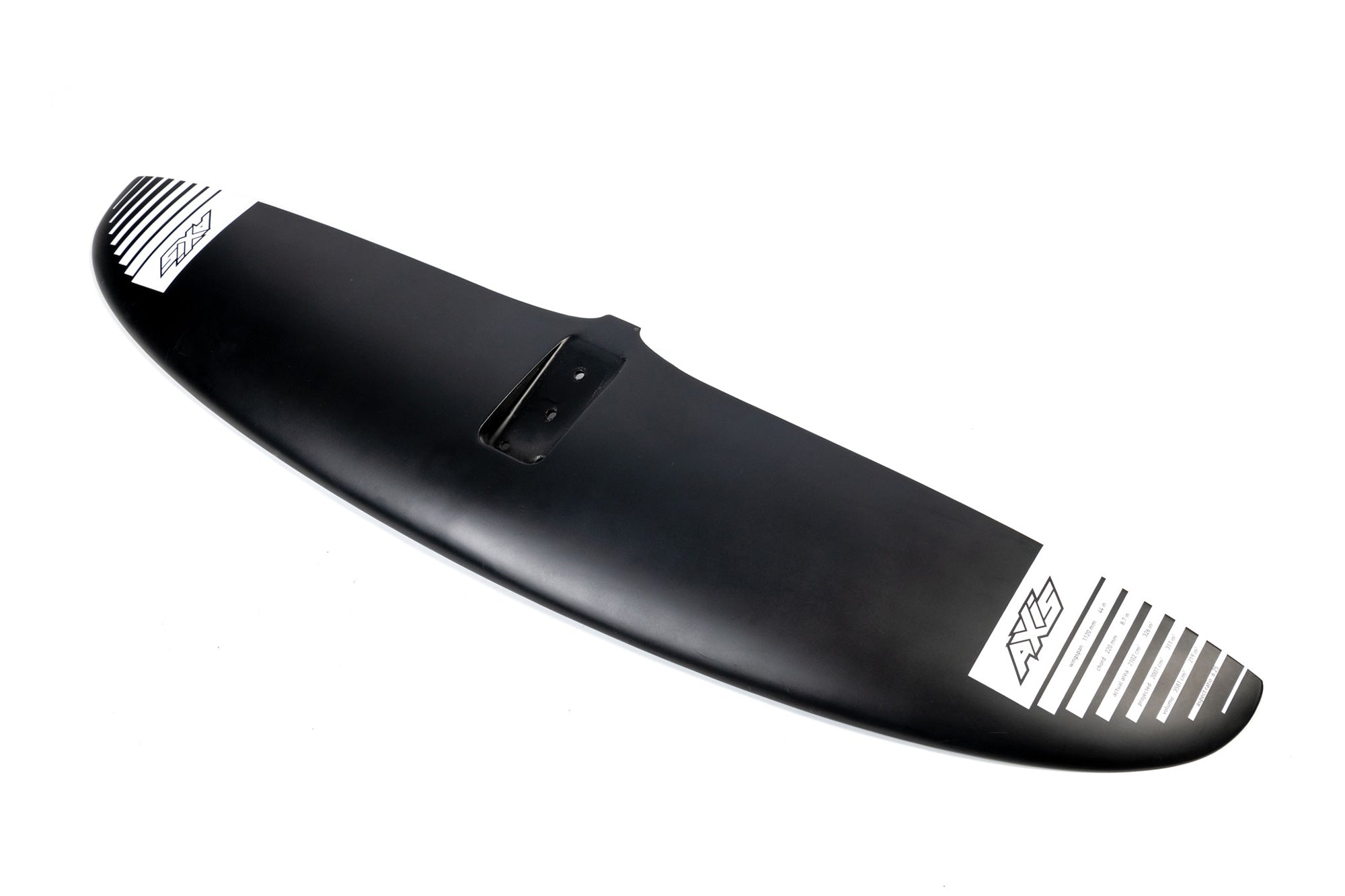

The 1120 and 1060 are part of the S-Series range and are the easiest wings for all levels, heavier riders and all rounders for WING, SUP, WAKE and PUMP. Very early lift, butter smooth riding, good speed range, and great turning for their size.

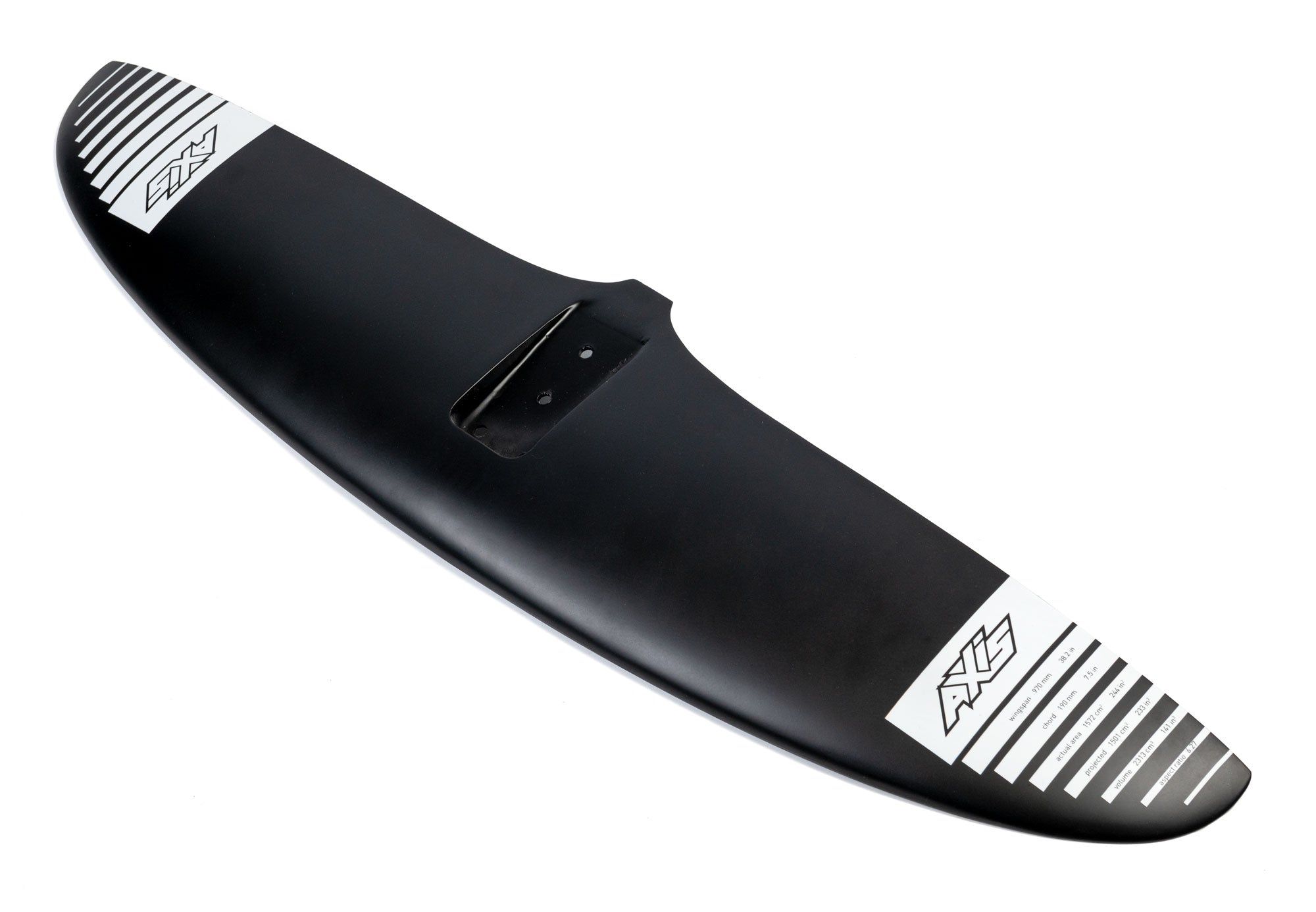

The 970 could be the all levels wing for all styles and levels of riding.

THE 1120-1060-970 WINGS ARE ONLY COMPATIBLE WITH THE RED FUSELAGES
Black Series

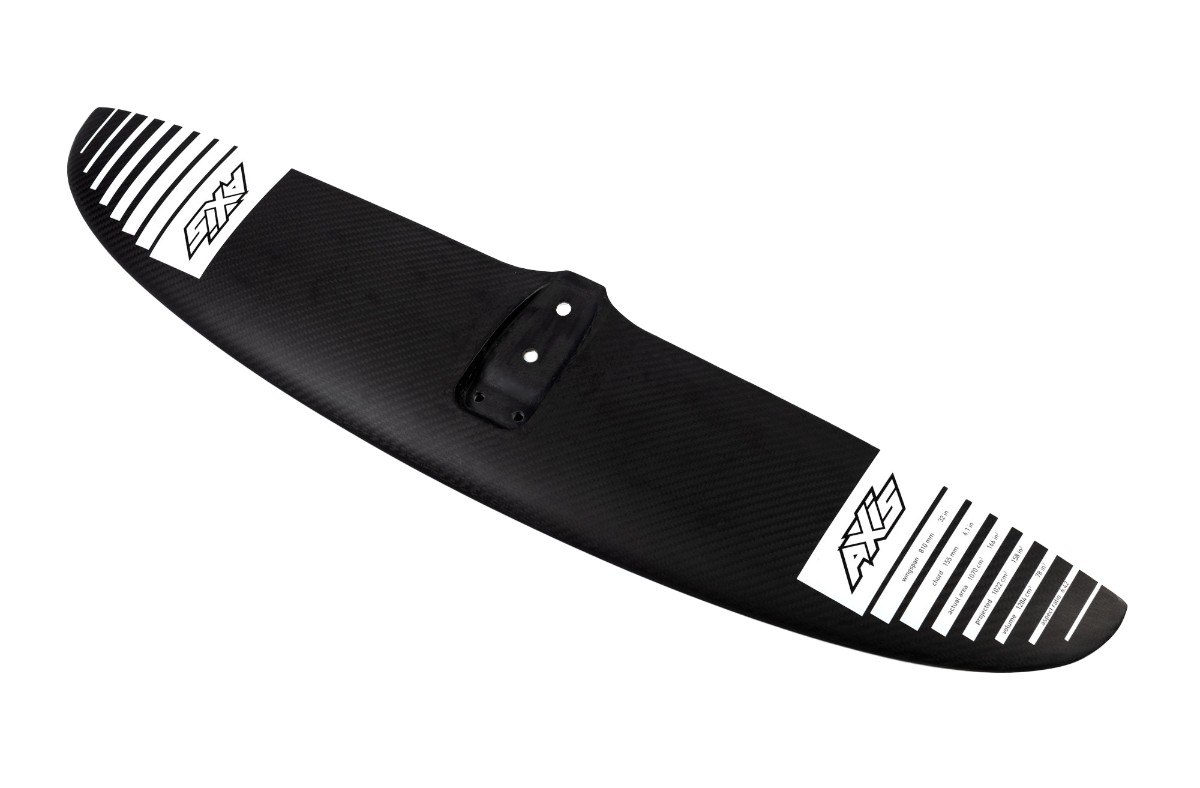

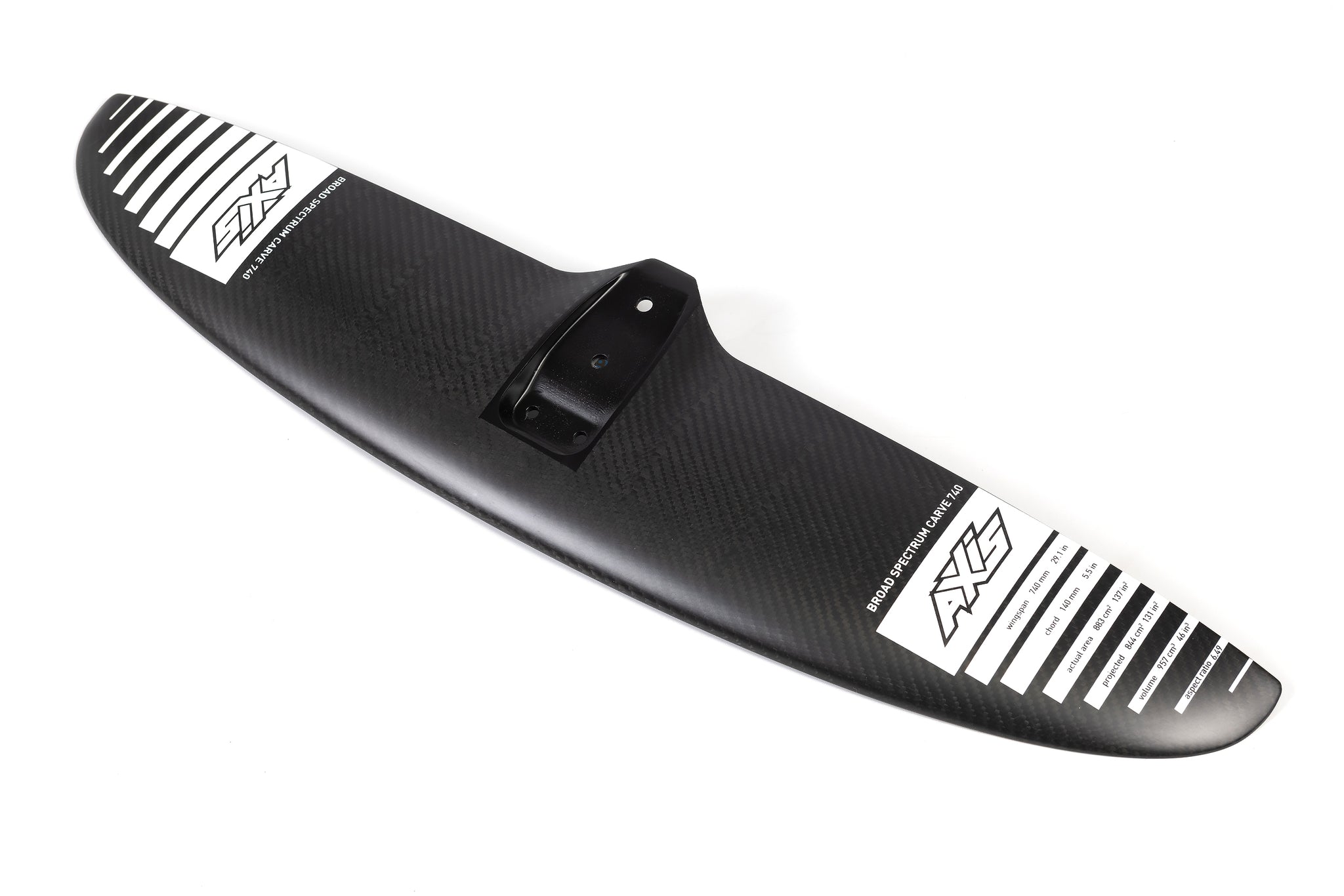

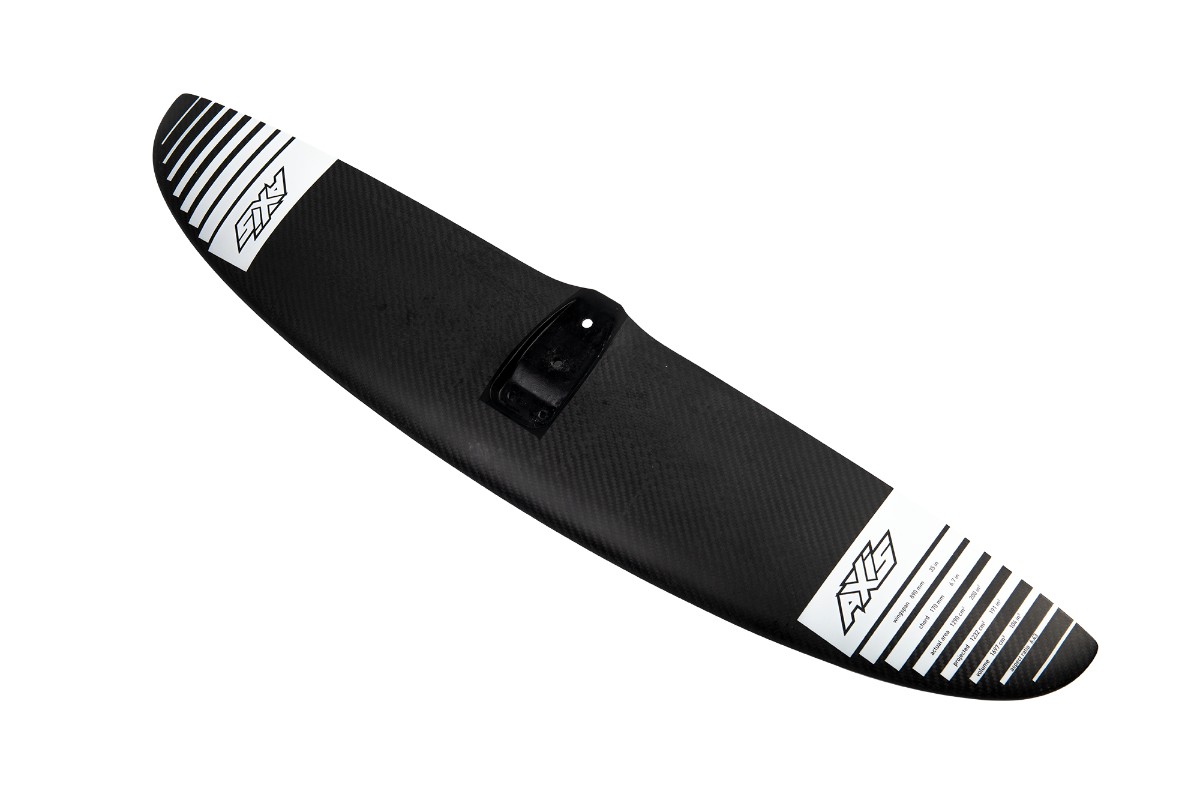

The 890-810-740 are part of the Black Series range and are faster, more technical wings, designed for the skilled SUP, PRONE, WINGING riders who are looking for higher performance in a very easy to ride package.

THE 890-810-740 WINGS ARE ONLY COMPATIBLE WITH THE BLACK FUSELAGES
Specification

WING
CHORD
AREA
SPAN
ASPECT RATIO
VOLUME

1120 Red
220 mm
2102 cm²
1120 mm
6.25
3581 cm³

1060 Red
200 mm
1803 cm²
1060 mm
6.51
2800 cm³

970 Red
190 mm
1572 cm²
970 mm
6.27
2313 cm³

890 Black
170 mm
1290 cm²
890 mm
6.43
1697 cm³

810 Black
155 mm
1070 cm²
810 mm
6.42
1284 cm³

740 Black
140 mm
833 cm²
740 mm
6.49
757 cm³
