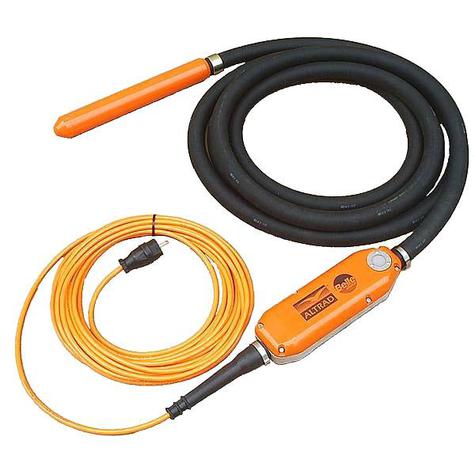

ALTRAD Belle Vibratech High Frequency Pokers – ALTRAD Belle Vibratech 58mm w/ 10m Hose

ALTRAD Belle Vibratech High Frequency Pokers
The ALTRAD Belle Vibratech High Frequency Pokers are a range of heavy-duty, highly reliable high frequency electronic pokers designed for the toughest of site conditions. The Vibratech pokers use an in-line converter, eliminating the need for an additional external power source.

A choice of 10m or 7m abrasion-resistant hose to poker head designed for deeply poured concrete is available. The simple and sturdy design provides a very reliable operation, long life motor requires virtually no maintenance. Finally, the die-cast moulded aliminium housing with chamfered edges is also environmentally friendly as it produces no emissions.
ALTRAD Belle Vibratech High Frequency Pokers Features:

7m or 10m abrasion-resistant hose to poker head available
15m of cable to switch for long reach from the power supply
Simple and sturdy design provides a very reliable operation
Long life motor requires virtually no maintenance
Die-cast moulded aluminium housing with chamfered edges and LED operation/fault display
Environmentally friendly produces no emissions

Vibratech High Frequency Pokers Specifications:

38mm w/ 7m Hose
38mm w/ 10m Hose
52mm w/ 7m Hose
52mm w/ 10m Hose
58mm w/ 7m Hose
58mm w/ 10m Hose

Hose Length (mm):
7
10
7
10
7
10

Poker Diamemet (mm):

38
38
52
52
58
58

Head Length (mm):
330
330
382
382
410
410

Speed (rpm):
12000
12000
12000
12000
12000
12000

Centrifugal Force (kN):
1825
1825
3420
3420
5075
5075

Input Current (A):
1.3
1.3
2.6
2.6
3.0
3.0

Vibration Level (m/s²):
2.13
2.13
1.77
1.77
1.99
1.99

Weight (Kg):
12
16
17
22
19
24

Questions
Should you have any questions regarding the ALTRAD Belle Vibratech, by all means, contact our fully trained staff for advice and assistance.
