ALTRAD Belle PCX Compaction Plates 12/36 & 13/40 – ALTRAD Belle PCX 12/36 14″ Petrol

ALTRAD Belle PCX Compaction Plates 12/36 & 13/40
The ALTRAD Belle PCX Compaction Plates 12/36 & 13/40 are heavyweight and professional compaction plates with extremely low hand arm vibration levels, while providing very high performance. These compaction plates are designed with a shorter base-plate to offer improved compaction, maneuverability and finish.
PCX Compaction Plates 12/36 & 13/40 Features:

Foldable mounted guide handles offer superior maneuverability and can be lowered to operate under obstacles
Reinforced centrifugal clutch ensures longer belt life, and simplified adjustments
Lifting points and front lift cage offers easier loading and unloading for operator convenience
Large capacity water tank can be built into the protective frame (Optional Extra)
Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on the plate bottom
The spray-bar is fully protected from damage with integral paving pad clamp points
Lubricated vibration bearings for extended product life

PCX Compaction Plates 12/36 & 13/40 Specifications:

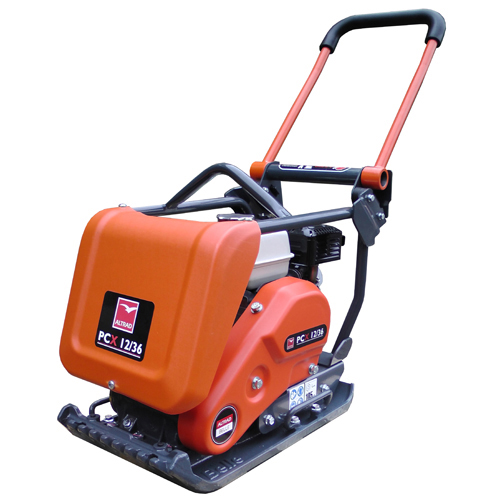

ALTRAD Belle PCX 12/36

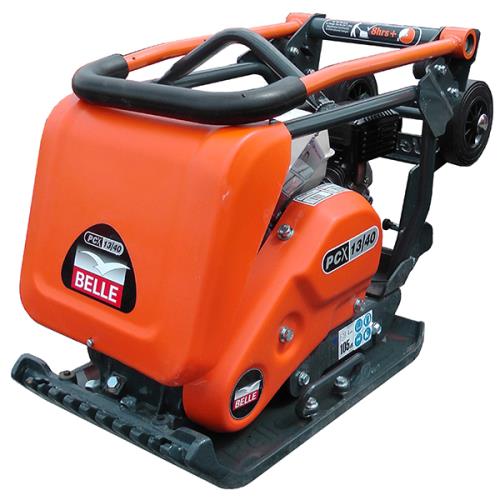

ALTRAD Belle PCX 13/40

Engine Type:
Honda GX120 Petrol
Honda GX120 Petrol

Power (hp):
4
4

Power (kw):
3
3

Plate Size (LxW) (mm):
720 x 360
720 x 400

Static Pressure (kg/m²):
586
520

Centrifugal Force (kN):
12.25
13

Travel Speed (m/min):
20
20

Vibrations (m/sec²):
4.74
3.2

Weight (kg):
81
83.50

Questions
Should you have any questions regarding the PCX Compaction Plates 12/36 & 13/40, by all means, contact our fully trained staff for advice and assistance.
