ALTRAD Belle Megavib+ Drive Unit and Poker Heads

ALTRAD Belle Megavib+ Drive Unit and Poker Heads

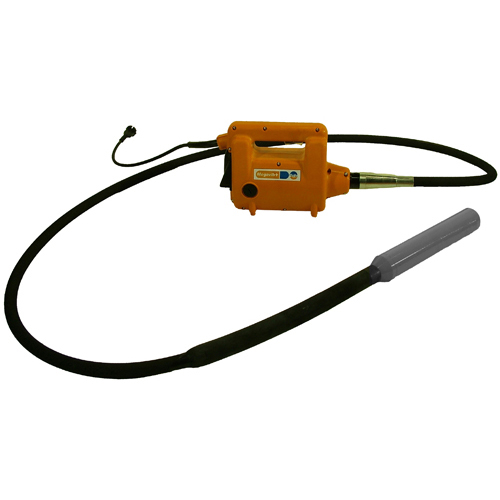

The ALTRAD Belle Megavib+ Drive Unit and Poker Heads is a compact high-frequency vibrating poker system. The vibrating poker heads of the Megavib+ Drive unit are interchangeable, allowing the user to select the best size for their application. The Megavib+ Drive Unit is an excellent solution for compact and portable air removal in concrete.
Megavib+ Drive Unit and Poker Heads Features:

Lightweight and compact for ease of handling
High impact motor housing for high durability
Double insulated for electrical safety
High-frequency vibration for productivity
Interchangeable heads and shafts
Comes complete with shoulder strap

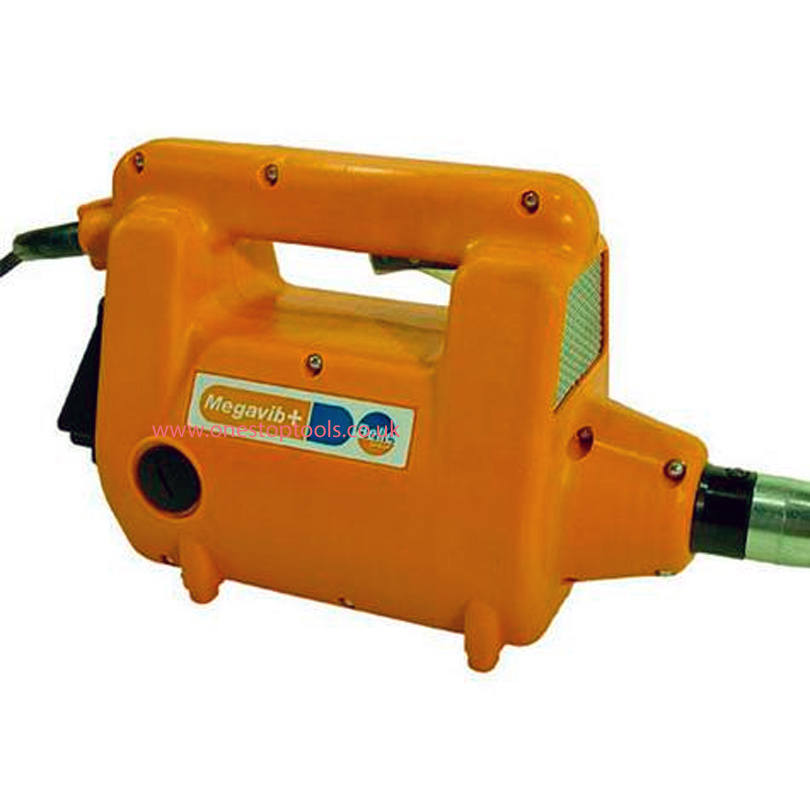

Megavib+ Drive Unit Specifications:

Megavib+ Drive Unit 110v
Megavib Drive Unit 230v

Motor Speed Unloaded (rpm):
16,000
16,000

Motor Speed Loaded (rpm):
12,000
12,000

Power (kW):
1.6
2.3

Loading (Amps):
13
10

Weight (kg):
4.8
4.8

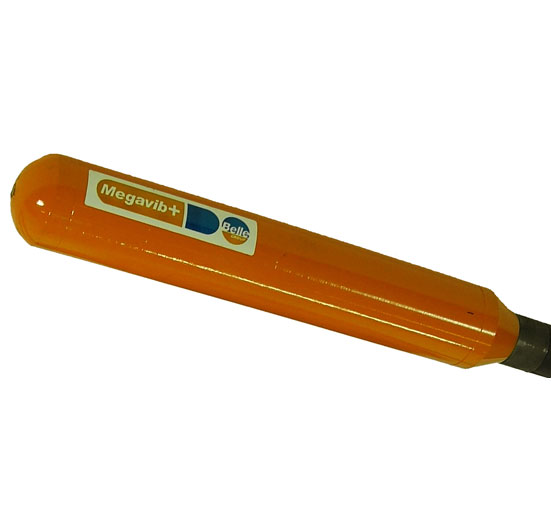

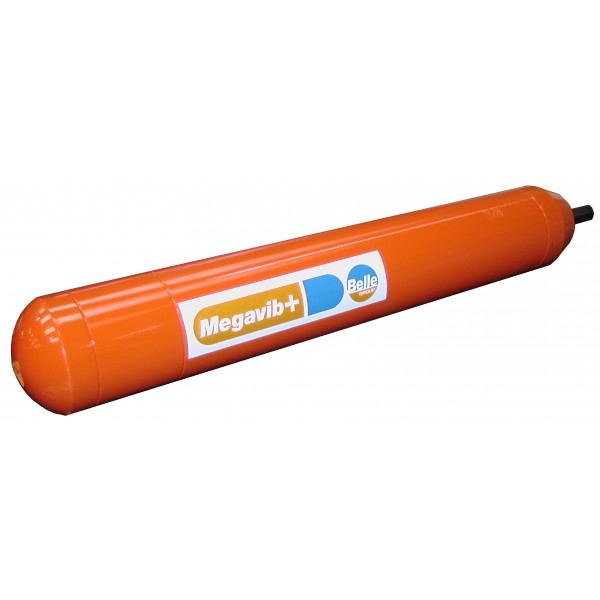

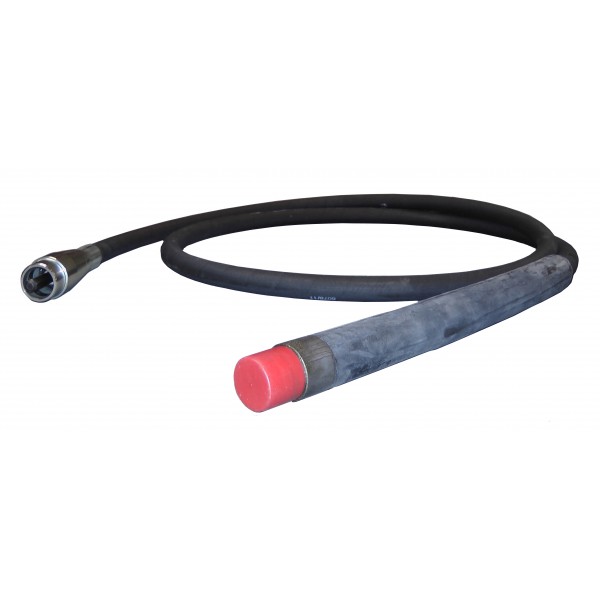

Megavib+ Poker Heads & Shafts Specifications:

3m Flexible Shaft
36mm Poker Head
50mm Poker Head
57mm Poker Head
25mm Poker Head & 3m Shaft

Poker Diameter (mm):

36
50
57
25

Head Length (mm):

292
327
346
300

Shaft Length (m):

3
3
3
3

Frequency (Hz):

217
200
192
225

Centrifugal Force (N):

4018
5039
6468
882

Weight (Kg):

1.9
3.7
5
5.5

Questions
Should you have any questions regarding the Megavib+ Drive Unit and Poker Heads, by all means, contact our fully trained staff for advice and assistance.
