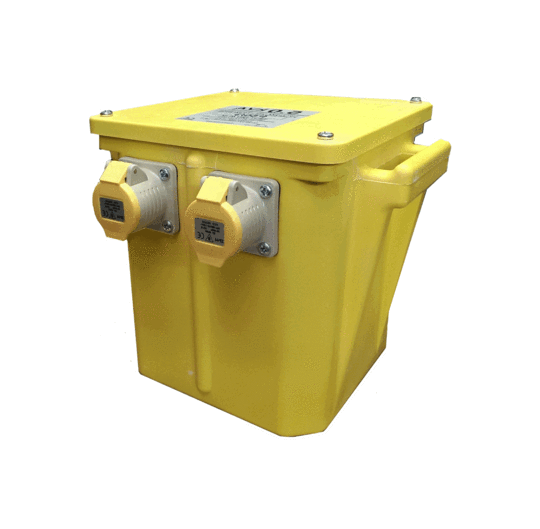

5Kva continuous single phase site transformer

110V 5KVA CONTINUOUS SITE TRANSFORMER
Buy a 5Kva continuous single phase site transformer that will meet all your industrial and commercial needs with its 110v power. Made to comply with reduced low voltage regulations ensuring safe electrical supplies on site. It also comes with handles to easily carry it from site to site.

Dedicatedly designed to BSEN 61558
A 16A 3 pin socket that has 2 outputs and a 32A 3 pin Socket with a single output.
Internal thermostat, a bendable metal strip that breaks the circuit on high heat and makes sure to avoid any mishap in case of overloading of voltage
2.55mm thick flexible input wire of 2m length
110v centre tapped to earth (cte) secondary winding to reduce the risk of shocks
Insulated splash proof GRP portable case (IP44)
Multiple wound designs to make sure the central isolation.

5kVA 1ph Continuous Specifications:

 Power
5kVA

 Duty
Continuous

 Input voltage
230vac 1ph

 Output voltage
110vac 1ph

 Sockets
2 x 16A 3pin, 1 x 32A 3 pin

 Dimensions (mm)
H: 270, W: 310, D: 340

 Weight (kg)
35

Questions?

Should you have any questions regarding the 5Kva continuous single phase site transformer, by all means, contact our fully trained staff for advice and assistance.
