2 x 4 Bedroom Houses Common Sewage Transfer Station – Basement & Drainage Solutions

BD-1700V2R-10 Package sewage pumping station. Ideally sized for multiple dwellings of up to 2no 4 bedrooms, or large single dwellings. Dual 10m head pumps.

All our pump stations are manufactured to the highest British Standards relevant to our industry such as BS EN 12050-1:2001 Wastewater lifting plants for buildings and sites, BS EN 12056-4:2000 Gravity drainage systems inside buildings and BS EN 752-6:1998 Drain and sewer systems outside buildings.

All our package units are delivered pre-built for quick and easy installation. The standard pumping station consists of 50mm solids handling heavy duty Vortex F50.10.1A (10m lift) submersible sewage pump.

This sewage pumping station is capable of pumping 175m with a buildings flow rate of 2.5l/s through a 63mm MDPE pump. ( Based on an average static head of 3.5m )

Included within your Sewage Pumping Station Package

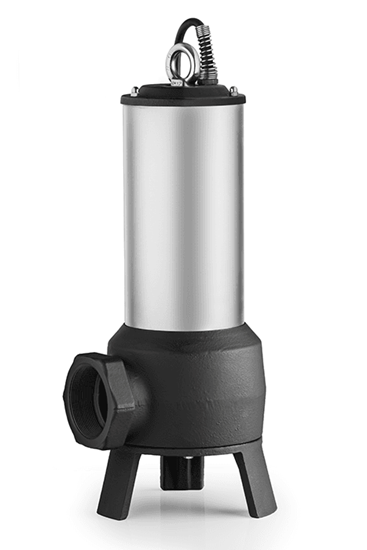

2 x Vortex F50.75.1A 50mm solids sewage pump (up to 10m lift)

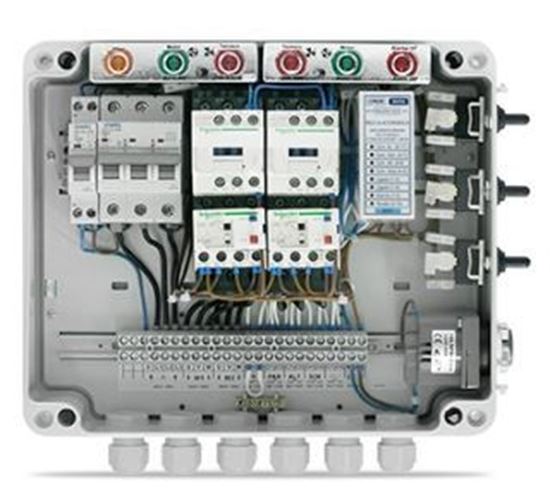

1 x 3303A dual alternating control, with thermal overloads and high level alarm
4 x Heavy duty self-weighted float switches

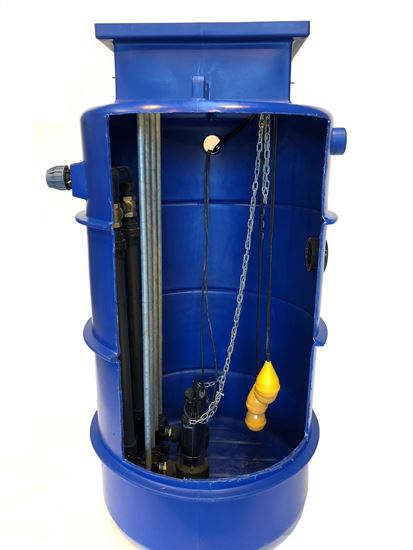

1 x 1000mm x 2000mm poly pump chamber with re-enforced ribs and 10 year warranty

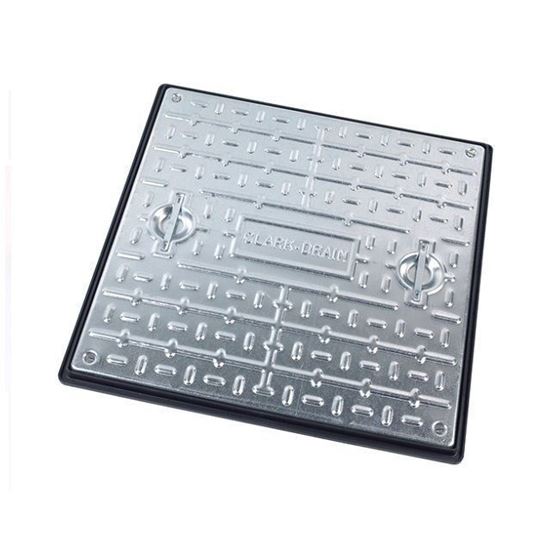

1 x Pedestrian rated 600mm x 600mm galvanised lockable manhole cover
2 x Pump Pedestal and Guide rail kit
1 x Non return valve
2 x Lifting chain and D-link
1 x Internal PVC discharge pipe work kit
1 x Float Bracket
1 x 110mm Seal for incoming Pipe
1 x 63mm MDPE adaptor for outgoing pipework
1 x 24 months warranty
1 x 1st years free maintenance visit. 2 x 4 Bedroom Houses Common Sewage Transfer Station – Basement & Drainage Solutions
